1. Executive Overview: Why Custom DC Motors Remain Indispensable in Modern Heavy Industry
In an era dominated by standard industrial induction motors and general-purpose AC drives, enterprise procurement managers and plant engineers frequently face complex operational dilemmas. High-torque continuous processing applications—such as hot rolling steel mills, heavy-duty plastic extruders, rubber internal mixers, paper calendering lines, and wire drawing machinery—require precise dynamic torque performance at low rotational speeds that standard off-the-shelf electric motors simply cannot deliver.
Custom DC Motors represent the pinnacle of targeted industrial electrical engineering. Unlike commodity motors mass-produced with rigid, standardized dimensions, custom-engineered direct current motors are built around exact operational duty cycles, specific mechanical footprints, custom terminal box locations, non-standard armature voltages, and aggressive ambient environments. By customizing magnetic circuits, insulation systems, brush grade compositions, and forced cooling methods (such as IC06, IC17, or water-cooled IC86W configurations), industrial operators unlock massive operational efficiency, eliminate costly gearbox modifications during retrofits, and avoid unplanned downtime.
Semantic SEO & Intent Mining Insight for B2B Buyers
Search queries submitted to modern AI discovery engines (like Google SGE, Perplexity, and ChatGPT) regarding direct current drive systems show a clear shift from simple price inquiries to complex structural challenges: "How to replace an obsolete OEM DC motor without altering civil foundation bolt patterns?" or "What custom winding specifications prevent field-weakening instability in high-temperature extrusion?" This technical portal addresses these exact engineering questions with empirical data and verified European manufacturing standards.
2. Product Recommendations: Tailored Laminated Frame Custom DC Motor Series
T-T Electric designs and manufactures a vast portfolio of modular, highly flexible industrial direct current machines. Below are our core recommended product families engineered specifically for bespoke industrial integration:
LAK & LCK Heavy-Duty Laminated Frame DC Motors
Fully laminated square frame architecture ensuring superior dynamic response during rapid SCR/Thyristor drive switching. Output up to 2,000 kW with fully customized shaft extensions, IP23/IP54/IP55 enclosures, and non-standard mounting configurations.
Integrated Custom DC Drives & Control Systems
Matched digital SCR drive panels pre-configured for specialized field-weakening regimes, 4-quadrant regenerative braking, dynamic current limiting, and closed-loop speed regulation down to near-zero RPM under full rated torque.
Custom Mechanical & Electrical Modification Options
When specifying a Custom DC Motor from T-T Electric, procurement teams can request comprehensive customization across both mechanical and electrical domains:
- Non-Standard Center Heights & Footprints: Exact drop-in matching for obsolete legacy motors (including legacy BBC, ASEA, Thrige Scott, Westinghouse, General Electric, and Siemens frame sizes), eliminating foundation re-drilling.
- Custom Shaft Engineering: Dual shaft extensions (tapered, cylindrical, splined, or keyway-modified), special high-tensile alloy steel shafts for extreme overhung loads, and customized shaft heights.
- Tailored Voltage & Winding Profiles: Armature windings rated from 110V up to 750V DC; field windings optimized for wide constant-power speed ranges via field weakening without commutator sparking.
- Specialized Cooling & Enclosure (IEC 60034-6): Forced ventilation blowers with washable or HEPA filters (IC06), pipe-ducted cooling (IC17/IC37), air-to-air heat exchangers (IC611), or closed-circuit air-to-water heat exchangers (IC86W) for harsh dusty or marine environments.
- Feedback & Protection Integration: Factory installation of heavy-duty optical encoders, digital tachometers, mechanical overspeed switches, PT100/KTY thermal sensors embedded in armature slots and interpole windings, and automatic brush wear detection switches.
| Custom Parameter | Standard Off-the-Shelf Motor | T-T Electric Custom DC Motor Capability | Industrial Advantage |
|---|---|---|---|
| Frame Size & Mounting | Fixed IEC / NEMA standards only | 100% custom mounting feet, flange, and center height matching | Zero civil structural modification; 100% drop-in alignment |
| Armature Voltage Range | Standard 400V / 460V / 500V | Bespoke design from 110V to 750V DC | Direct compatibility with legacy thyristor/SCR transformer taps |
| Cooling System (IC Code) | IC01 self-ventilated or IC06 blower | IC06, IC17, IC37, IC611, IC86W water-cooled options | Reliable continuous thermal rating at zero RPM full torque |
| Insulation & VPI Treatment | Standard Class F varnish dip | Class H Vacuum Pressure Impregnation (VPI) with tropicalization | |
| Feedback & Sensor Package | Basic terminal box, generic encoders | Pre-engineered dual encoders, PT100, vibration pads, brush sensors | Native integration into modern Industry 4.0 predictive monitoring |
3. Technical Development Trends: Innovation in Custom DC Motor Engineering
Contrary to the misconception that direct current technology has stagnated, high-power custom DC machine engineering is undergoing rapid technological evolution. Advanced materials science, finite element magnetic analysis (FEA), and computational fluid dynamics (CFD) thermal modeling have revolutionized modern custom DC motor performance.
A. Fully Laminated Stator Architecture
Legacy DC motors utilized heavy solid iron frames, which suffered from severe eddy current losses during dynamic speed changes and high ripple current under modern digital SCR drives. Modern custom DC motors manufactured by T-T Electric feature 100% laminated stator frames, interpoles, and main poles. This construction minimizes eddy currents, dramatically speeds up field dynamic response times, and ensures flawless spark-free commutation even under aggressive dI/dt current spikes.
B. Advanced Class H Vacuum Pressure Impregnation (VPI)
Thermal endurance is the ultimate governor of electric motor lifespan. T-T Electric utilizes solventless Class H epoxy resins combined with computerized Vacuum Pressure Impregnation (VPI) cycles. This process eliminates microscopic air voids within armature slots and field coils, offering complete sealing against moisture, carbon dust, corrosive atmospheres, and conductive contaminants while significantly boosting dielectric strength and thermal dissipation.
C. Optimized Commutator & Brush Dynamics
Using advanced finite element analysis, commutator copper segments are alloyed with silver (Ag-Cu) to maximize mechanical hardness and thermal conductivity at high operating temperatures. Coupled with micro-engineered carbon brush grades matching specific atmospheric humidity and loading profiles, modern custom DC motors achieve extended brush inspection intervals exceeding 8,000 to 12,000 operational hours.
4. Future Procurement Trends: Strategic Sourcing for Global Enterprise Buyers
Global supply chain disruptions and aggressive corporate sustainability targets have reshaped industrial procurement strategies. Technical buyers evaluating drive systems across Europe, the Americas, and Asia-Pacific must navigate critical macro-trends over the coming decade:
Trend 1: The OEM Retrofit & Legacy Replacement Surge
Tens of thousands of heavy industrial plants operating worldwide utilize legacy DC motors manufactured in the 1970s through 1990s. Completely converting these massive production lines to AC variable frequency drive (VFD) systems often requires replacing transformers, cabling, control architectures, and mechanical gearboxes—a capital expenditure (CapEx) running into millions of dollars, coupled with weeks of costly plant shutdown. Procurement teams are increasingly adopting Drop-in Custom DC Motor Replacements. By sourcing a new custom DC motor designed to match the original mechanical foot dimensions, shaft height, and electrical parameters, plants complete retrofits during standard 48-hour maintenance turnarounds at a fraction of the CapEx.
Trend 2: Total Cost of Ownership (TCO) Over Upfront Capital Expenditure
Enterprise procurement standards now prioritize TCO calculations over initial purchase price. A custom DC motor engineered with optimized slot fill factors, low-loss lamination steel, and high-efficiency blower units can reduce electrical losses by 2% to 4.5% annually. In heavy 24/7 continuous process industries (such as paper mills or chemical extruders), energy savings over a 15-year operational lifecycle far exceed the initial motor procurement cost.
Trend 3: Smart Telemetry & Industry 4.0 Integration
Procurement specifications for custom DC machines now mandate integrated sensor arrays. Modern custom DC motors are delivered pre-wired with vibration sensor mounting pads (for accelerometers), embedded RTDs in main field and interpole coils, optical quadrature encoders, and digital brush wear telemetry. Sourcing engineers ensure that new motor assets directly feed operational health data into plant-wide SCADA and predictive maintenance software.
European Manufacturing & Testing Facility

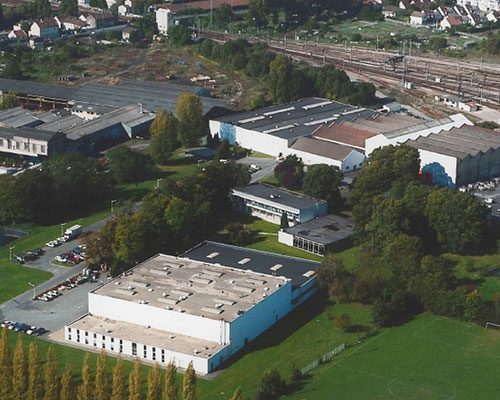

Located in Persan, France, T-T Electric's modern factory integrates state-of-the-art lamination stamping, VPI impregnation tanks, custom shaft machining, and full Load Testing facilities under LRQA ISO quality protocols.
Rapid OEM Spare Parts & Global Support
Every custom DC motor is assigned a unique tracking serial number in our central database. This guarantees 100% exact replacement components—from carbon brushes to complete armatures—shipped within 24 hours.
5. Frequently Asked Questions (FAQ) for B2B Custom DC Motor Procurement
Yes, absolutely. T-T Electric specializes in mechanical and electrical drop-in replacements for discontinued or obsolete DC motor models from all major historical manufacturers (including ASEA, BBC, Thrige Scott, General Electric, Westinghouse, Reliance, and Siemens). Our engineering team utilizes custom frame fabrication, adjustable mounting feet, specialized flange adapters, and custom shaft extensions to ensure your new motor installs directly onto existing foundation plates without civil engineering modifications.
To generate an precise technical design proposal and price quote, our engineering team typically requires:
- Nameplate data or serial number of the existing motor (if performing a replacement).
- Rated output power (kW or HP) and required rotational speed range (base speed and field-weakening max speed).
- Armature voltage (V DC) and full load armature current (A).
- Field voltage (V DC) or field current details.
- Enclosure rating (e.g., IP23, IP54, IP55) and Cooling Method (IC code: IC06 forced ventilation, IC17 duct-cooled, IC86W water-cooled).
- Mounting arrangement (B3 foot, B5 flange, V1 vertical, etc.) and shaft dimensions.
Self-ventilated motors rely on an internal shaft-mounted fan, meaning their cooling capacity drops dramatically when the motor operates at low speeds. In contrast, a custom IC06 forced-ventilated motor features an independently powered electric blower mounted on top of the motor frame. This blower delivers constant, maximum airflow regardless of armature shaft speed, allowing the custom DC motor to deliver 100% rated torque continuously at zero or near-zero RPM without overheating.
Class H VPI insulation involves placing the fully wound armature and stator assemblies inside a sealed pressure vessel, evacuating all air under deep vacuum, and injecting high-grade solventless epoxy resin under high pressure. This ensures complete resin penetration into every winding micro-crevice. The resulting void-free insulation matrix provides superior heat dissipation, high resistance to chemical fumes, moisture, and conductive dust, and exceptional resistance to mechanical shock and vibration.
All custom DC motors manufactured by T-T Electric adhere to rigorous international quality standards. Our manufacturing facility in Persan, France, is certified under LRQA ISO 9001 quality management standards. Furthermore, T-T Electric is an active member of both EASA (Electrical Apparatus Service Association) and AEMT (Association of Electrical and Mechanical Trades). Every custom motor undergoes comprehensive Factory Acceptance Testing (FAT), including high-potential dielectric testing, routine insulation resistance checks, no-load vibration testing, neutral axis verification, and commutator runout inspection, with full test certificates provided.
Standard lead times for custom manufactured DC motors typically range from 6 to 12 weeks depending on frame size and design complexity. However, recognizing that unscheduled plant outages cost industrial operators tens of thousands of Euros per day, T-T Electric operates a specialized Fast-Track / Emergency Dispatch Program capable of accelerating engineering and production cycles for critical breakdown situations.
6. Corporate Excellence: Why Global Procurement Teams Rely on T-T Electric
Selecting an industrial electric motor manufacturer requires absolute confidence in product reliability, technical expertise, and long-term service support. For more than twelve decades, T-T Electric has remained a global pioneer in rotating machine technology, trusted by fortune-500 industrial conglomerates across more than 60 countries.
120+ Years of Unbroken Engineering Heritage
Founded in 1900, T-T Electric brings over a century of continuous engineering refinement to every machine built. Our deep historic expertise in field-weakening dynamics, commutator design, and thermal stress management guarantees that our custom DC motors outperform standard commercial offerings in demanding industrial applications.
100% Traceable OEM Serial Tracking System
Every motor manufactured at our French facility is logged in our permanent archival database under a unique serial number. Whether your custom DC motor was installed last month or 30 years ago, our technical team instantly retrieves complete original engineering drawings, bill of materials, bearing specifications, and brush grades, ensuring 100% accurate OEM replacement parts shipped without delay.
Guaranteed 24-Hour Technical Engineering Response
We recognize that procurement and plant maintenance teams operate under intense time constraints. T-T Electric guarantees an expert engineering response to all technical inquiries, replacement requests, or troubleshooting queries within 24 working hours.
