Precision-engineered explosion-proof drives and high-efficiency induction motors certified for hazardous operational environments globally.
An authoritative technical evaluation of explosion-proof motor manufacturing, standard compliance, structural thermal safety, and global export benchmarks.

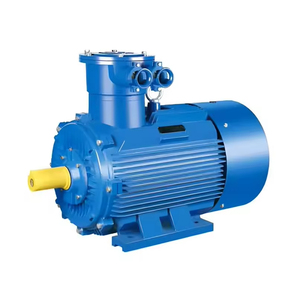

Flameproof induction motors (categorized under Chinese national standard GB/T 3836 and international IEC 60079-0/1 standards) are engineered to prevent internal electrical arcs or sparks from igniting explosive dust or gas clouds in surrounding atmospheres. Unlike non-sparking or increased safety motors, YBX3 series flameproof motors feature heavy-duty cast iron enclosures rated to withstand maximum internal explosion pressure without structural deformation, while precision-machined flame paths cool escaping gases below ignition threshold temperatures.
Modern Chinese OEMs utilize high-permeability cold-rolled silicon steel laminations combined with Class H vacuum pressure impregnated (VPI) copper windings. This configuration curtails stator core losses and minimizes temperature rise during continuous S1 duty cycles under extreme ambient variations (-20°C to +60°C). Incorporating IP55/IP66 enclosure protection guarantees resistance against dust ingress and high-pressure water jets across hazardous processing zones.
A comparative matrix outlining standard parameter ranges across leading industrial flameproof motor series produced in China.
| Motor Series | Power Range (kW) | Efficiency Class | Explosion Protection Code | Frame Material | Primary Application Sectors |
|---|---|---|---|---|---|

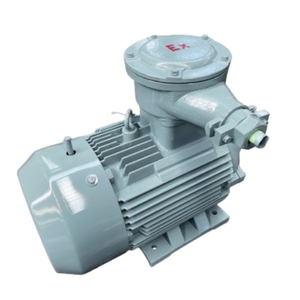

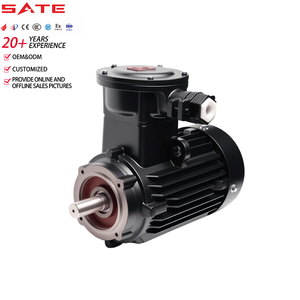

| YBX3 Series | 0.55 kW – 375 kW | IE3 / Premium Efficiency | Ex d I Mb / Ex d IIB T4 Gb / Ex d IIC T4 Gb | HT250 High-Grade Cast Iron | Petrochemical Refineries, Offshore Drilling, Coal Mining |
| YBX4 Series | 0.75 kW – 315 kW | IE4 / Super Premium Efficiency | Ex db IIC T4/T5 Gb | Ductile Iron / HT250 | Chemical Processing, Natural Gas Compression, LNG Terminals |
| YB2 / YB3 High Power | 185 kW – 1000 kW+ | IE2 / IE3 | Ex d IIB T4 Gb | Reinforced Ribbed Cast Iron Frame | Heavy Mining Ventilation, Pipeline Pumping Stations |

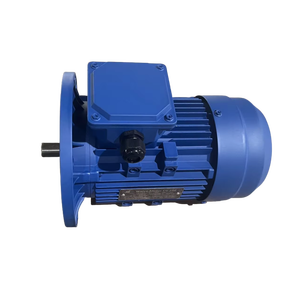

| Compact Aluminum Body | 0.18 kW – 7.5 kW | IE2 / IE3 | Ex d IIB T4 / Standard TEFC | Die-Cast ADC12 Aluminum | Pharmaceutical Machinery, Food & Grain Processing |

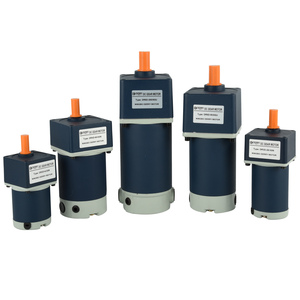

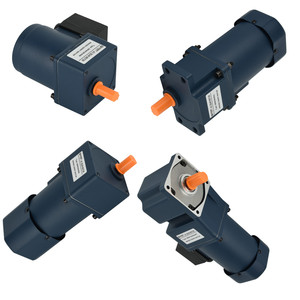

| Gear Speed Controlled AC | 40W – 120W / Fractional | Custom Speed Control | Enclosed Gearhead / IP54 | Precision Machined Alloy | Automated Hazardous Material Conveyors, Dosing Pumps |
Key strategic shifts driving procurement decisions for plant managers, OEM machine builders, and international EPC contractors.
Global regulatory bodies, including EU EcoDesign Directive and China's GB18613-2020 mandates, are forcing industrial operators to phase out IE2 and lower-efficiency units. Purchasing decisions increasingly focus on total cost of ownership (TCO), where electricity accounts for over 90% of a motor's lifecycle cost. High-efficiency YBX3 and YBX4 flameproof motors significantly reduce carbon tax liabilities and operating expenses.
International industrial buyers now require single-source suppliers capable of providing dual or triple certified motors. Top China exporters offer units tested simultaneously against IECEx, ATEX, UL, CSA, and EAC standards. This multi-region compliance reduces inventory management complexity for multinational OEMs shipping equipment across diverse regulatory zones.
Industry 4.0 transformation has reached explosive environment equipment. Modern flameproof motor procurement specifies factory-fitted wireless vibration and surface temperature sensors rated for Zone 1 and Zone 2 hazardous areas. Real-time condition telemetry prevents catastrophic bearing failures and unpredicted shutdown events in remote processing units.
Pioneering advancements in materials, variable speed drive compatibility, and thermal management within Chinese flameproof motor design.
Operating flameproof induction motors on Variable Frequency Drives (VFDs) introduces steep voltage rise rates (dV/dt) and high-frequency harmonic reflections that stress winding insulation. Chinese motor technology now incorporates corona-resistant enameling wire, reinforced phase separators, and insulated non-drive end (NDE) bearings to eliminate shaft current erosion, allowing smooth variable speed operation down to 10% rated RPM under full torque output.
Through Finite Element Analysis (FEA) thermal fluid simulation, next-generation motor frames feature optimized external cooling fins and aerodynamic fan cover profiles. Furthermore, low-power hazardous area applications are adopting high-pressure die-cast aluminum alloys that offer a 30% weight reduction without compromising flamepath gap tolerance or structural flame containment capability.
Reflecting over 120 years of legacy rotating machine engineering excellence, our production ecosystem synthesizes European precision design standards with China’s high-capacity manufacturing agility. Every flameproof motor produced undergoes 100% rigorous routine testing—including dynamic balancing, insulation surge breakdown, stator resistance checks, and hydrostatic enclosure pressure validation.
Expert answers addressing compliance, customization, voltage compatibility, and shipping protocols for international engineering buyers.
Connect directly with senior motor application engineers. We provide comprehensive CAD dimensions, electromagnetic performance curves, and competitive factory-direct quotation packages tailored to your project deadlines.
