Engineered to eliminate peak transient dv/dt voltage breakdown, thermal derating, and bearing fluting. Explore our core lineup tailored for global industrial exporters and OEMs.

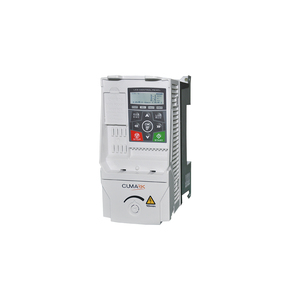

Advanced vector control frequency inverter converting single to three-phase supply. Engineered for low-noise high-torque motor drive dynamic control.

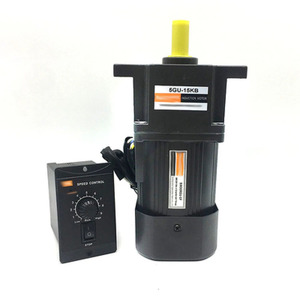

Versatile 110V/220V/380V constant/variable speed induction geared motor designed for compact automated conveyor and precision industrial assembly lines.

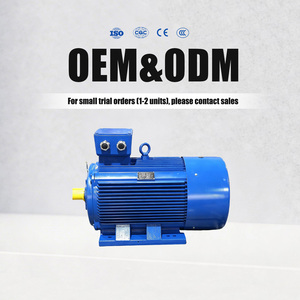

Heavy-duty 4-pole cast iron asynchronous motor built with reinforced spike-resistant insulation for heavy industrial VFD continuous duty.

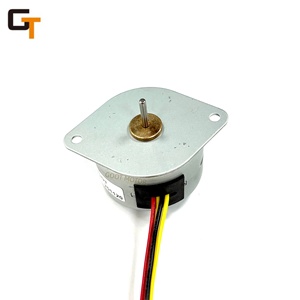

Precision 110VAC/24VAC 250/300RPM synchronous motor providing exact constant speed performance under varying load conditions for valve controls and actuators.

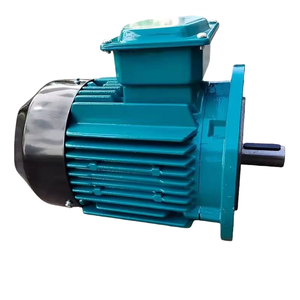

Optimized 50Hz variable speed 3-phase AC motor delivering superior thermal efficiency and wide turn-down performance in continuous air moving operations.

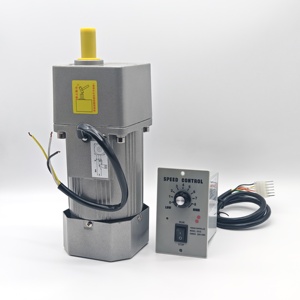

6W to 400W fractional horsepower induction gear motor range equipped with integrated speed controllers for industrial OEM machinery custom integration.

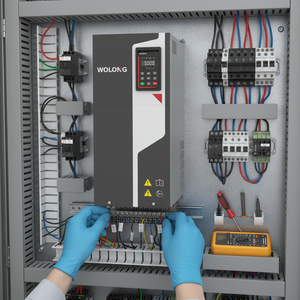

4KW to 37KW high-efficiency variable frequency vector control three-phase AC drive motor engineered for heavy manufacturing equipment and extruders.

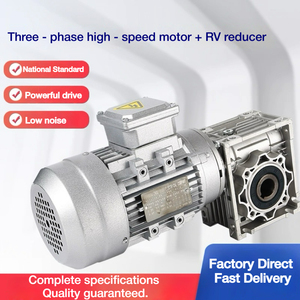

IE2 efficiency 220V/380V/440V speed adjustable asynchronous motor paired with worm gearbox. Waterproof design ideal for food processing and marine environments.
Partnering with global EPCs, original equipment manufacturers, and heavy industrial plants to deliver custom electric drive solutions certified to the world's strictest quality metrics.
Since our inception in 1900 in Persan, France, T-T Electric has maintained a world-class reputation as a specialized manufacturer of industrial DC motors, square frame AC motors, and variable frequency drive (VFD) solution sets. Modern variable speed application demands require far more than placing a VFD in front of a standard induction motor. The aggressive voltage rise times (dv/dt) generated by modern Insulated Gate Bipolar Transistors (IGBTs) subject motor stator windings to severe dielectric stress and electrical partial discharge.
Our custom OEM inverter duty AC motors integrate NEMA MG1 Part 31 compliant insulation systems, utilizing Class H corona-resistant magnet wire, Vacuum Pressure Impregnation (VPI) with 100% solid epoxy resins, and electro-statically isolated bearing systems. Whether your project requires drop-in replacement dimensions for legacy DC drives or bespoke flange configurations for specialized extruders, fans, and marine winches, our factory provides precision-tailored engineering backed by comprehensive technical diagnostics.
An in-depth analysis of insulation physics, thermal dynamics, bearing shaft current mitigation, and field-weakening performance in high-demand variable speed applications.
In modern industrial automated plants, Variable Frequency Drives operating at high carrier frequencies (4 kHz to 16 kHz) supply pulse-width modulated (PWM) voltage waveforms to AC induction motors. While this enables exact speed control and vector torque response, the fast switching speeds of IGBTs generate high rate-of-rise voltage spikes (dv/dt). When motor cables exceed 20 to 50 meters, transmission line impedance mismatching creates reflected voltage waves, producing voltage peaks at the motor terminals reaching up to 2.5 times the nominal DC bus voltage (often exceeding 1600V to 2000V peak).
Standard self-ventilated motors rely on shaft-mounted cooling fans (IC411). When operating under variable frequency control at low RPMs (e.g., a 10:1 to 1000:1 turn-down ratio), the cooling airflow produced by a shaft fan drops with the square of motor speed. Running at 10% rated speed drops cooling air velocity by 90%, leading to rapid thermal runaway under constant torque loads.
Independent constant-speed auxiliary cooling blowers maintain 100% rated airflow even when the main shaft is operating at zero RPM, permitting continuous full-rated torque output across the entire speed spectrum.
Direct embedded winding sensors (PT100, PTC thermistors) provide real-time thermal telemetry directly back to the VFD control loop to prevent thermal overload during extreme operating duty cycles.
Premium grade 200°C rated magnet copper with high copper slot fill ratios minimizes rotor and stator copper loss ($I^2R$), dramatically lowering ambient heat generation under non-sinusoidal harmonic drive conditions.
Common-mode voltage generated by 3-phase VFD inverters induces capacitive charging voltages on the motor rotor shaft. When this shaft voltage exceeds the dielectric breakdown threshold of the bearing lubricant film, high-frequency Electrostatic Discharge (EDM) currents arc through the rolling bearing elements. Over time, this arcing causes micro-pitting, fluting ridges across bearing raceways, severe vibration, and premature bearing destruction.
| Design Feature | Standard General AC Motor | Standard Inverter Motor | T-T OEM Custom Inverter Duty Motor |
|---|---|---|---|
| Insulation Grade | Class F (155°C) Standard Wire | Class F / H Inverter Wire | Class H (180°C+) Spike-Resistant VPI |
| NEMA MG1 Part 31 Compliance | Non-Compliant | Partial (Up to 1400V Peak) | Fully Compliant (Up to 2200V Peak Spike) |
| Bearing Shaft Current Protection | None (Standard Steel Bearings) | Optional Conductive Microfiber Ring | Insulated NDE Bearing + AEGIS Grounding Ring |
| Continuous Torque Turndown Ratio | 4:1 or 10:1 (Self-Cooled IC411) | 20:1 (Limited Low Speed) | 1000:1 to 2000:1 (Forced Blower IC416) |
| Enclosure Protection Rating | IP44 / IP54 Standard | IP55 Cast Iron | IP55 / IP65 / IP66 Waterproof Custom OEM |
| Speed Encoder Integration | External Retrofit Kit | Optional Shaft Extension | Factory Integrated Heavy-Duty Incremental/Absolute |
Key industry shifts driving OEM machine design, energy efficiency regulations, and custom electric motor procurement over the next decade.
Global regulatory mandates (EU MEPS, US DOE rules) are accelerating the departure from IE2 and IE3 induction motors toward IE4 Super Premium and IE5 Ultra Premium efficiency ratings. Sourcing departments are increasingly procuring Permanent Magnet Assisted Synchronous Reluctance (PM-SynRM) and line-start synchronous AC motors that deliver zero rotor losses and peak energy savings under part-load VFD operating profiles.
Modern OEM machinery buyers no longer accept unmonitored power units. Future-ready inverter duty motors are engineered with factory-integrated wireless vibration sensors, stator temperature telemetry, and magnetic flux leakage monitors. This data connects directly to industrial IoT dashboards to detect bearing wear, winding insulation decay, and load imbalance weeks before an unprogrammed outage occurs.
Industrial plants worldwide are systematically replacing maintenance-intensive DC motors (which require brush replacements and commutator turning) with drop-in, square-frame variable speed AC induction motors. OEM factories specializing in custom shaft heights, foot-to-flange conversions, and high torque density in small physical envelopes are dominating global industrial retrofit procurement contracts.
The introduction of Silicon Carbide (SiC) and Gallium Nitride (GaN) power electronics in next-generation VFD drives has dramatically increased switching speeds (rise times under 50 nanoseconds). OEM motor manufacturers must design winding structures with advanced slot geometry and ceramic-coated slot liners capable of withstanding extreme dv/dt switching stress without corona breakdown.
Addressing key technical inquiries from industrial buyers, machine builders, and system integrators.
