Explore engineered dual-output shaft DC motors designed for industrial robotics, smart appliances, DIY motion control, and high-torque automated machinery. All units undergo 100% dynamic load testing and precision balance verification.

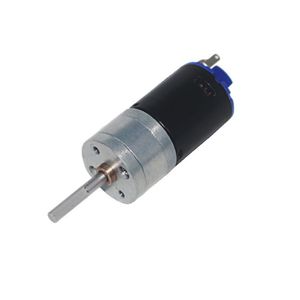

PMDC Heavy Duty
Permanent Magnet IE2 brushed geared DC motor featuring dual 9mm output shafts, high stall torque retention, and copper-graphite brush commutation for electric bicycles and heavy actuators.

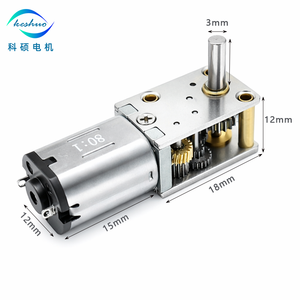

Micro Gearbox
Ultra-compact 90-degree right-angle dual shaft N20 gear motor. Engineered for smart lock keyway drive mechanisms, automatic door bolts, and precision micro-robotics.

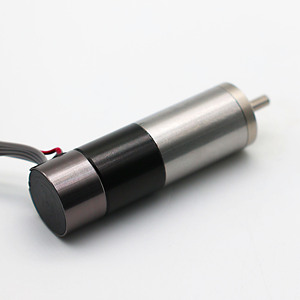

Coreless High Speed
Ultra-fast dynamic response coreless micro motor featuring dual extended shafts. Perfect for model train locomotion, precision DIY servos, and medical pump drives.

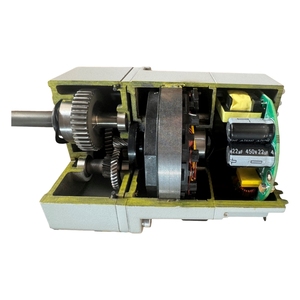

High Power Industrial
Industrial-grade 200W brushless DC motor with custom reduction gear ratio. Offers high thermal endurance, dual shaft power takeoff, and continuous factory automation duty.

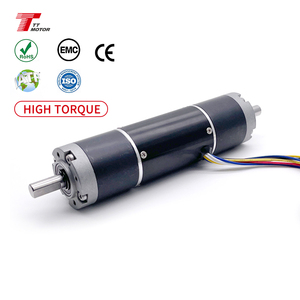

BLDC 36mm
Brushless 36mm outer diameter DC motor delivering superior torque-to-weight ratio, low electromagnetic interference (EMI), dual shaft mounting, and hall sensor feedback support.

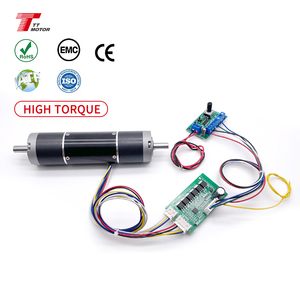

Planetary Gearhead
Heavy-duty planetary gear motor built for synchronized dual-arm robotics and precision conveyor drives. High torsional stiffness and dual shaft extension for rotary encoder coupling.

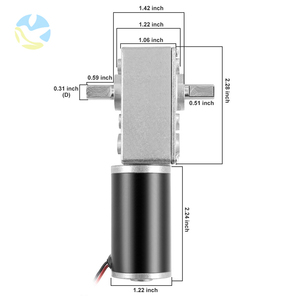

Self-Locking Worm
High-torque, low-RPM self-locking worm geared DC motor with dual output shafts. Optimized for home automation, boat steering mechanisms, and heavy window actuators.

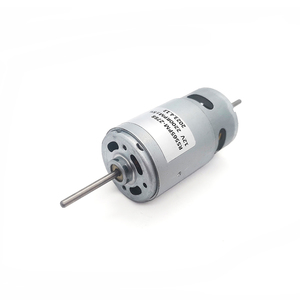

Robotics & Tools
Versatile 2200RPM dual-shaft electric motor with permanent magnet stator. Designed for dual fan systems, power tools, lawn care equipment, and educational robotics kits.
Dual shaft DC motors represent a specialized category of electromechanical actuators designed to deliver mechanical power simultaneously from both ends of the rotor shaft. Unlike standard single-shaft motors, dual-shaft configurations enable direct dual-side mechanical coupling, integrated optical/magnetic speed feedback via rear shaft encoders, manual override capabilities, and dual-axis drive transmission without requiring auxiliary gearboxes or complex belt splitters. When sourcing wholesale quantities from Chinese manufacturers and factories, procurement managers and senior engineering teams must evaluate key mechanical, electrical, and thermal parameters to ensure long-term operational reliability.
Information Gain Key Insight: Dual shaft motors experience complex compound torsional shear stresses. Sourcing specifications must define not only output torque at the primary drive end (DE), but also maximum allowable torsional stress ($\tau_{max}$) on the non-drive end (NDE) to prevent shaft shear during asynchronous loading.
In dual-shaft applications—such as dual-actuator smart locks, twin-wheel AGV platforms, or dual-fan HVAC systems—radial forces ($F_r$) and axial thrust loads ($F_a$) are applied concurrently to both rotor journals. Chinese OEM factories utilizing precision CNC shaft grinding achieve shaft concentricity within ≤ 0.005 mm and runout limits within 0.003 mm. This mechanical precision reduces parasitic vibration (NVH compliance) and prevents premature bearing race fatigue.
The total equivalent dynamic bearing load ($P$) for dual shaft setups is calculated using the standard ISO 281 formula adapted for dual load inputs:
Where $X$ and $Y$ represent dynamic radial and axial factors based on bearing clearance. Premium dual shaft factories integrate dual preloaded ball bearings (such as NMB or NSK series) rather than oil-impregnated sintered bronze bushings to handle combined bidirectional loads.
Custom shaft end profiles (D-cut, double D-cut, keyway, spline, or knurled) engineered with strict h6/g6 tolerance for zero-backlash coupling.
Rotors are dynamically balanced to ISO 1940 Grade G2.5 standard, eliminating resonance vibration and extending brush life by over 40%.
High-performance Class H (180°C) copper magnet wire combined with epoxy resin potting for extreme industrial ambient environments.
Selecting the right dual shaft motor architecture depends on supply voltage, target operational torque, speed constraints, and lifespan requirements. The table below compares the major topologies produced by top Chinese manufacturing plants.
| Motor Topology | Nominal Voltage | Stall Torque Range | System Efficiency | Expected Lifespan | Primary Industrial Application |
|---|---|---|---|---|---|
| PMDC Brushed Dual Shaft (e.g., JGA25-370S, 31ZY) | 6V – 36V DC | 0.5 Nm – 8.0 Nm (Geared) | 65% – 78% | 2,000 – 4,000 Hours | Electric Bicycles, Power Tools, Home Appliances |
| BLDC Outer/Inner Rotor Dual Shaft (e.g., 36mm BLDC) | 12V – 48V DC | 0.1 Nm – 3.5 Nm (Direct Drive) | 82% – 92% | 15,000+ Hours | Precision Conveyors, AGV Drive Wheels, Robotics |
| Coreless Dual Shaft Micro Motor (e.g., 1620 Series) | 3.7V – 12V DC | 0.01 Nm – 0.15 Nm | 85% – 90% | 3,000 – 6,000 Hours | Medical Dosing Pumps, DIY Model Trains, Optical Drives |
| Planetary Geared Dual Shaft BLDC (e.g., 36mm Planetary) | 12V – 24V DC | 2.0 Nm – 25.0 Nm | 75% – 85% | 10,000+ Hours | Heavy Industrial Automation, Solar Trackers, Marine Gates |
| Worm Geared Self-Locking Dual Shaft (e.g., FT-58SGM) | 12V – 24V DC | 5.0 Nm – 35.0 Nm | 45% – 60% | 3,500 Hours | Smart Locks, Boat Actuators, Garage Gate Opener |
Integrating European engineering standards (heritage of T-T Electric with over 120 years of electrical rotating machinery innovation) with high-capacity Chinese production infrastructure delivers unparalleled value for global OEM procurement.
Our partner production facilities adhere strictly to ISO 9001:2015 quality management protocols, combined with international electrical trade body standards including EASA and AEMT. Every custom batch of dual shaft DC motors undergoes rigorous end-of-line (EOL) electrical testing, insulation resistance checking (HIPOT at 1500V), thermal imaging diagnostics, and shaft concentricity laser measurement.
High-density slot fill factor achieved through CNC multi-axis automatic winding heads, reducing copper resistance variations to under ±2% per batch.
Rapid prototype sampling within 7 to 10 working days for custom shaft length, special spline machining, and customized gear ratio development.
Guaranteed technical response within 24 hours on all working days, providing CAD/STEP model downloads, motor characteristic curves, and FEA analysis.
As global industrial automation shifts toward Industry 4.0, smart logistics, and energy-efficient electromechanical systems, global procurement teams must align their supply chains with upcoming technological shifts in Chinese wholesale motor manufacturing.
Traditional ferrite permanent magnets are increasingly being replaced by sintered Neodymium-Iron-Boron (NdFeB) grade N42H and N48H magnets. This material transition allows dual shaft DC motors to achieve 35% higher torque density while reducing overall motor length by up to 25%, crucial for space-constrained medical and smart lock applications.
Modern B2B purchasers require dual-shaft motors where the Rear Non-Drive End (NDE) is factory-prepped for magnetic magnetic incremental or absolute optical encoders. This enables closed-loop PID control directly from the back shaft, leaving the front shaft free for pure power transmission.
Leading Chinese factories are standardizing modular motor end-bells. B2B buyers can interchange planetary, spur, or worm gearboxes on the same core dual-shaft DC motor frame, reducing stock-keeping unit (SKU) complexity for OEM distributor inventories.
Environmental regulations require full lead-free soldering, conflict-free raw material sourcing, and compliance with EU RoHS 3 and REACH directives. Tier-1 wholesale suppliers provide full material composition declarations (IMDS) with every bulk delivery.
The rapid expansion of consumer electronics, automotive smart actuators, and warehouse robotics has accelerated technical innovations in dual-shaft DC motor design. Key engineering breakthroughs include:
Essential technical and commercial guidance for purchasing managers, engineering designers, and wholesale importers evaluating Chinese dual shaft DC motor suppliers.
Partner directly with leading Chinese dual shaft DC motor manufacturers. Submit your CAD specifications, operating voltage, target torque, and annual volume requirements to our engineering team.
