Explore our premium range of precision-engineered copper commutators, collector rings, and carbon brush assemblies manufactured to international standards (ISO 9001, LRQA, EASA).
In modern rotating electrical machinery, the commutator and collector ring assembly serves as the core electromechanical component responsible for mechanical rectification and continuous electrical power transfer between stationary brushes and rotating armatures. Whether in heavy-duty industrial Direct Current (DC) traction motors, high-speed automotive wiper drives, or complex 360-degree rotating machinery collector rings, the mechanical integrity, thermal expansion coefficient, and arc-suppression capabilities of commutator rings directly determine the overall reliability, energy efficiency, and operational lifespan of the electric motor.
As a premier China top motor commutator rings factory and supplier, our engineering operations combine over a century of traditional metallurgical expertise—tracing design philosophies back to European standards such as T-T Electric—with state-of-the-art automated CNC machining, high-precision mica slotting, and thermosetting glass-fiber molding technologies. This technical guide outlines the physics of sparkless commutation, material selection matrices, critical quality evaluation parameters, and global procurement trends for OEM engineering managers and procurement executives.

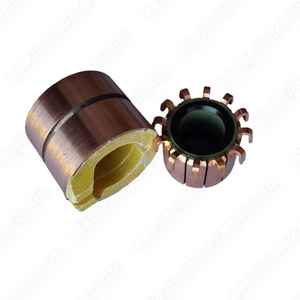

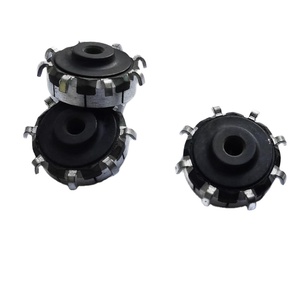

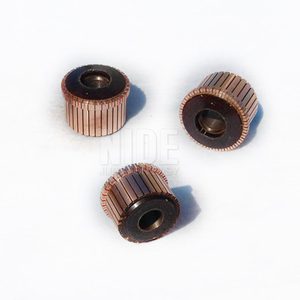

Designed primarily for automated armatures in fractional horsepower (FHP) motors, household appliances, and automotive windshield wiper drives. Featuring tang copper extensions for direct fused wire termination.

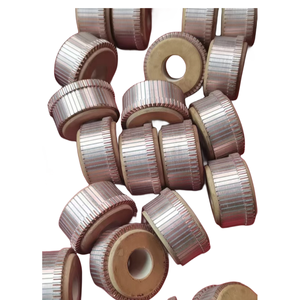

Heavy-duty industrial commutator rings constructed for medium-to-large DC traction motors, steel mill drives, and marine propulsion. High-grade silver-copper segments joined via silver soldering or TIG welding.
Features high thermal-stability phenolic resin reinforced with structural glass fibers. Engineered for extreme rotational speeds (>20,000 RPM) where centrifugal forces demand superior arch containment.
The selection of copper alloys and inter-segment insulation materials dictates a commutator ring's resistance to mechanical deformation, thermal softening (annealing), and electrical arc erosion. Standard pure electrolytic copper (ETP Cu) often exhibits thermal softening when operating temperatures exceed 180°C under heavy continuous load. To counteract thermal degradation, modern precision commutators utilize advanced silver-bearing copper alloys.
| Material Grade | Composition Spec | Electrical Conductivity | Softening Temp (°C) | Primary Industrial Application |
|---|---|---|---|---|
| Cu-ETP (C11000) | Cu > 99.90% | ≥ 100% IACS | 180°C - 200°C | Standard industrial DC motors, automotive auxiliary motors. |
| CuAg0.10 (C11400) | Cu + 0.10% Ag | ≥ 98% IACS | 320°C - 350°C | Traction motors, heavy industry DC drives, high-torque industrial armatures. |
| CuCrZr (C18150) | Cu-Cr 0.8% - Zr 0.15% | ≥ 80% IACS | 450°C - 500°C | Extreme RPM aerospace generators, high-frequency commutating slip rings. |
| Alkyd/Phenolic Resin | Glass Fiber Reinforced | Dielectric > 30 kV/mm | 220°C (HDT) | Precision molded shell commutators for power tools & PLC brush motors. |
Equally crucial is the dielectric insulation sandwiched between copper segments. Premium factory processing requires reconstituted built-up mica sheets (Micanite) bonded with high-grade epoxy or silicone resins, complying with IEC 60371 standards. After initial assembly, precision undercut machines perform V-shaped or U-shaped slotting to depress mica insulation 0.5mm to 1.5mm below the copper running surface. This prevents "high mica" defects—a leading cause of severe brush sparking, chatter, and rapid carbon brush wear.
As the global industrial sector transitions towards higher energy efficiency, electrification of commercial transport, and automated motion control, the technical requirements placed on China's OEM commutator suppliers are evolving rapidly. Technical buyers and supply chain directors must evaluate five macro trends shaping the future of motor commutator sourcing:
With industrial motors operating under tighter thermal enclosures and higher current densities, standard ETP copper is increasingly being phased out in favor of silver-bearing copper (CuAg0.10). Procurement teams are prioritizing suppliers with direct mill access to silver-copper rod drawing lines to ensure long-term thermal stability.

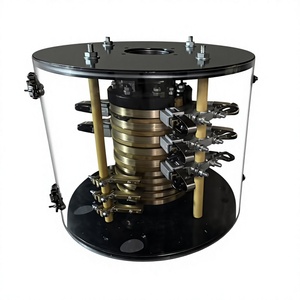

Modern rotating machinery, such as 360-degree crane rotators and wind turbine pitch controls (e.g., YTC Series 380V/600V modules), demands integrated assemblies that combine high-current copper commutators with low-noise signal slip rings within a single composite molded housing.
High-speed motors require commutators subjected to hyper-speed spin testing at 150% rated speed under 200°C thermal seasoning. Leading Chinese manufacturing plants now supply ISO 1940 Grade G2.5 dynamically balanced commutators out-of-the-box, drastically reducing armature vibration during final assembly.
Environmental regulations in the EU and North America require complete elimination of halogenated flame retardants and toxic binder solvents in phenolic molding compounds. Sustainable supply chains demand verified REACH and RoHS compliance certificates for all insulating materials.
Global motor remanufacturers (EASA/AEMT members) are seeking suppliers capable of rapidly reproducing obsolete industrial commutators from STEP 3D files or worn physical samples within 7 to 14 days, leveraging 5-axis CNC machining centers.
Drawing upon over 120 years of legacy engineering standards inspired by world-class electric motor pioneers (such as T-T Electric's heritage in industrial DC and AC machinery), our factory represents the pinnacle of Chinese commutator manufacturing capability. We specialize in producing both high-volume standardized motor components and highly customized commutator rings for heavy industrial drives.
Every production batch undergoes strict quality control protocols, including 100% bar-to-bar electrical resistance checking, dielectric strength testing up to 5,000V, and 3D CMM dimensional inspection.
As an active supply partner to global repair association members, we supply drop-in replacement commutators matching exact OEM electrical, mechanical, and thermal specifications for fast repair turnarounds.

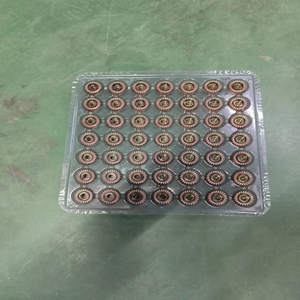

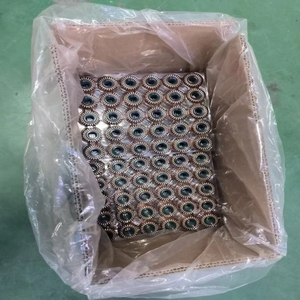

From 12-segment micro PLC brush motor rings to massive 120-segment traction motor commutators with special-shaped bore keys, spline profiles, and integrated cooling fins, our engineering team accommodates all technical drawings.
To generate an precise technical quote, our engineering department requires: (1) Outer Diameter (OD), (2) Inner Bore Diameter (ID) and keyway specification, (3) Total Height / Stack Length, (4) Number of Copper Segments, (5) Copper Alloy Grade (ETP vs. Silver-Bearing CuAg0.10), (6) Insulation Class (Class F 155°C or Class H 180°C), and (7) Operating RPM for dynamic balancing calculations. CAD drawings (STEP/DWG) or high-resolution samples are preferred.
Silver-bearing copper (containing 0.08% to 0.12% silver) significantly increases the thermal annealing temperature of the commutator segments from ~180°C up to 350°C without sacrificing electrical conductivity (maintaining ≥98% IACS). This prevents segment lifting, copper creep, and bar deformation under heavy thermal overload conditions in industrial DC motors and traction drives.
Mica undercutting removes the top layer of inter-segment mica insulation, lowering it 0.5mm to 1.5mm below the copper running surface. Because mica is harder than copper and wears down slower under carbon brush contact, failing to undercut results in "high mica," which causes carbon brush bouncing, electrical arcing, severe commutator copper burning, and sudden brush failure.

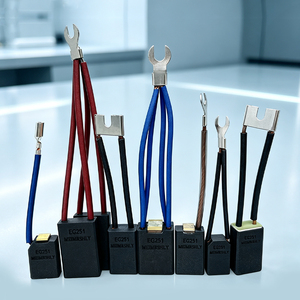

Electrographite carbon brushes (such as the EG251 grade) are ideal for medium-to-high speed industrial DC motors and slip rings due to their low friction coefficient, excellent filming properties, and high thermal resistance. For low-voltage high-current applications (e.g., automotive starter motors), metal-graphite (copper-graphite) brushes are recommended to minimize voltage drop across the brush contact interface.
All molded shell and V-ring industrial commutators undergo high-temperature thermal seasoning and dynamic spin testing at 1.25x to 1.5x their maximum rated rotational speed (up to 25,000 RPM for small power tools, and up to 4,000 RPM for large industrial traction armatures). Bar-to-bar runout is held within strict tolerances (< 0.003 mm).
For standard catalog designs (such as standard 12-segment or 24-segment hook commutators), our MOQ starts at 500 units. For custom heavy-industrial replacement commutators (EASA repair market), we support single-unit custom prototype orders (MOQ = 1 piece) with typical rapid-sample delivery times of 7 to 10 working days.
Need technical assistance, custom CAD drawings, or an immediate quotation for high-performance motor commutator rings and collector assemblies? Our technical engineers respond within 24 hours.
